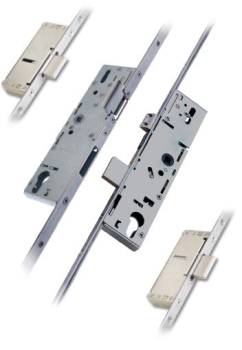

45/92mm AIREDALE FRENCH DOOR MASTER LOCK (2 DEADBOLT)

10 Year Guarantee

Designed to meet the requirements of PAS 23 and PAS 24

Available as 45mm backset with a 20mm face bar

Suitable for securing flush French timber doors – no need for false (dummy) mullion

Master lock securely engages into slave mechanism; automatically deadlocking slave unit once operated using anti foul device

Slave lock has recessed adjustable plates for deadbolt clearance and compression adjustment of +/-2mm

Central brass deadbolt throws 22mm to prevent unauthorised access

Tapered high security forged brass bolts for anti-separation resistance – bolt throw of 18mm

Adjustable latch striker plate offering +/- 2mm

Non-handed lock mechanism with reversible sash bolt to minimise stock requirements

Snib facility as standard

Accepts standard 92mm unsprung handles and euro profile cylinders

Split spindle for lever/pad applications – choice of length available

Suitable for inward and outward opening double doors

Optional shoot bolts, master and slave extensions available
